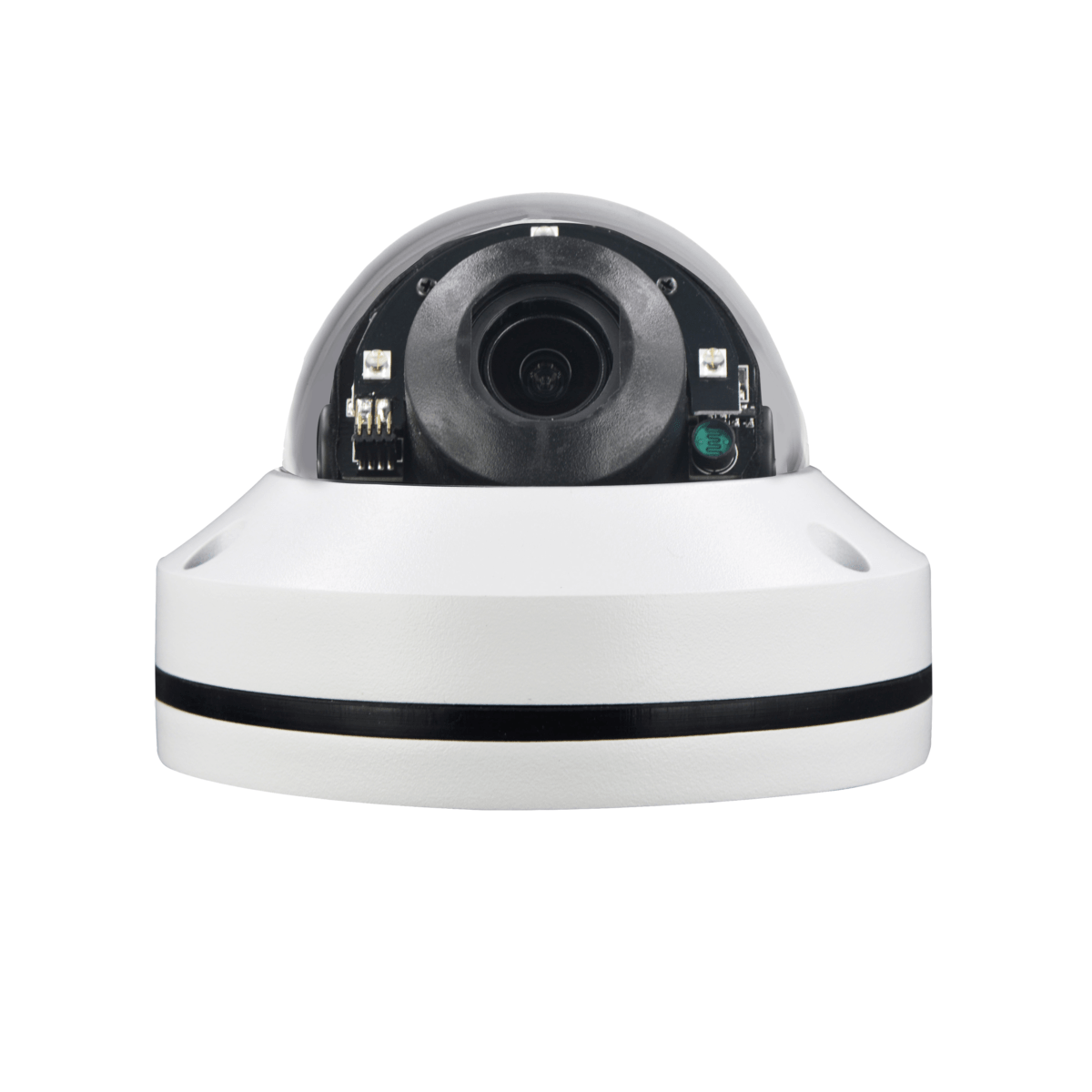

IPTZ-3520D : (5MP Outdoor mini Dome PTZ IP Camera, 3x Optical lens with IR, +PoE )
CA$350.00
Features:
- Plug an play to CTvision, Hikvision, Uniview NVR
- 5MP mini PTZ IP Dome Camera
- 3x optical zoom
- Support H.265 & H.264 Triple-streams encoding
- Support PoE (802.11af)
- IR distance up to 20m / 60ft
- IP66 water-proof
In stock
Description
- Plug and play to CTvision, Hikvision, Uniview NVR
- 1/2.8″ Sony STARVIS CMOS sensor
- HD resolution up to 5MP(2592 x 1944) output
- Low illumination 0.01Lux
- Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
- D-WDR, Mirror, Defogging
- Multiply Style OSD Overlay,Motion Detection, Privacy Mask
- RTSP and Onvif 17.06 compatible with many third-party NVR
- H.264/H.265 dual-stream media serverEasy-to-use P2P Cloud service
- Supports user authentication, video data encryption
- Supports Alarm Snapshot to Email and FTP
- Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
- Lightning protection 4000V
- Strong water-proof housing IP65
- 2 pcs SMD Array IR Leds, IR distance 20 meters (60 feet)
- Network PTZ control, 3 times optical zoom
- HD 2.8 – 8 mm x3 optical AF lens
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
|
Model |
IPTZ-3503D |
|
Camera |
|
|
Image Sensor |
1/2.8″ Sony IMX335 CMOS |
|
Effective Pixels |
5 megapixels (2592*1944) |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
AGC/BLC/HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
|
Encode |
|
|
Video Standard |
H.265/H.264 |
|
Video Resolution |
MainStream:15fps@5MP(2592×1944),25fps@4MP/3MP,30fps@1080P/720P. Sub Stream: D1/VGA(640×480)/360P/QVGA@25fps |
|
Video Bitrates |
32Kbps – 8Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a |
|
OSD Overlay |
Title and Time overlay |
|
IR Led |
|
|
IR Led |
2pcs SMD IR Led |
|
IR Distance |
>20 M (60 FT) |
|
Lens |
|
|
Focal length |
2.8-8mm AF lens |
|
IRIS |
F1.6 |
|
Zoom |
3x optical zoom |
|
PTZ |
|
|
Horizontal Scanning |
255 |
|
Auto Cruising |
Pan: 0.5° ~60° /s; Tilt: 0.5° ~60° /s |
|
Pattern Scanning |
Support |
|
Power on Action |
Support |
|
Power-off Recovery |
Support |
|
Network Services |
Preset/Scan |
|
Protocol |
Support |
|
P2P |
Support |
|
Media |
Yes |
|
ONVIF |
IE , Firefox (32bit esr), etc. |
|
General |
CMS, Android, IOS |
|
Network Port |
17.06 compatible |
|
Power Supply |
12 VDC ± 10% or POE |
|
Power Consumption < 20 W or PoE 802.22AT |
|
|
Operating Temp. |
-35℃-(+60)℃, 10%-90%RH |
|
Size |
Φ210(mm)×415(mm) |
