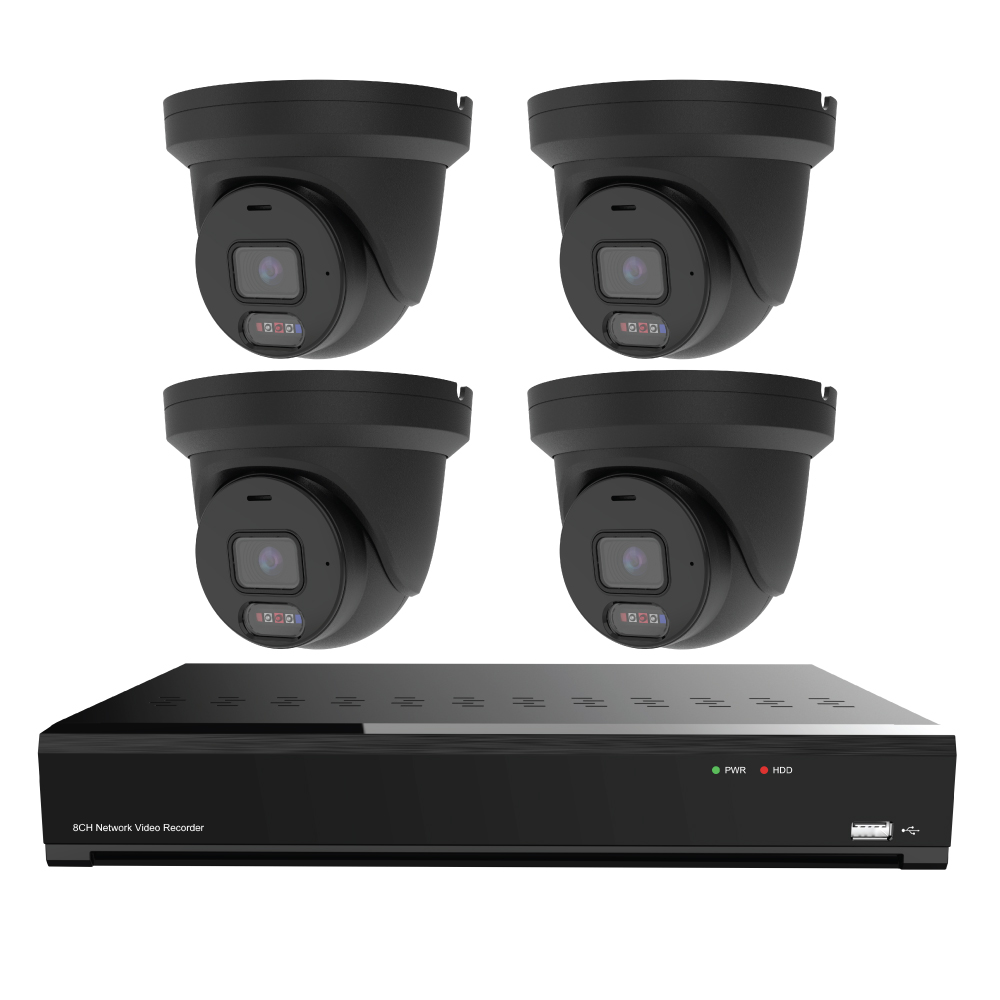

PA-53442B (CTVISION 4ch 5MP / 2TB HDD full-color turret camera + AI function/two way audio) Black
CA$610.00
- CTVISiON IP system comes with a NVR + 2TB HDD and 4 x 5MP (2560 x 1920) IP camera
- A-series Professional NVR capable of live view, recording, and playback up to 5MP (2560 x 1920)
- Plug & Play with 4 Power-over-Ethernet (PoE) interfaces
- Built-in LED for color night-vision
- 2-way audio feature with built-in speaker and microphone
- Built-in A.I. function (line-crossing, intrusion, face detection, etc.)
- 2TB HDD for continuous video recording
- Up to 72 Mbps incoming bandwidth
- Multiplex (Live/Playback, Recording, Backup, Networking)
- Various recording features (Normal, schedule, motion, A.I.)
- Access Remotely via Ethernet connection with CMS and Smartphone free App
- Junction box optional
In stock
Description
Camera Features:
Imaging Device
1/2.7″
Effective Pixels
5MP 2560(H)×1920(V)
Min. Illumination
Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Lens Type
Fixed(M12/F1.0)
Focal Length
2.8 mm
Angular Field of View
Horizontal:110° , Vertical:58°, Diagonal: 131°
Warm Light Viewable Length
Up to 20m
Image Setting
Full Color Mode/Day&Night Mode/Smart Illumination
Smart Feature
Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection,
Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound,
Intrusion, Region Entrance, Region Exiting
Audio
Two way audio for each camera
Video Quality Adjustment
256Kbps ~ 16Mbps
Operating Conditions
-30 ~ +60°C ≤ 95% RH
Ingress Protection
IP67
Network Recorder Features:
Video Recording Bandwidth Resolution
5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P)
Video Recording Bandwidth Inputs
72M
Video Recording Bandwidth out
72M
Frame rate
5MP:90fps
2MP:180fps
Playback
Max 4CH playback
PoE
4PoE
Power consumption (excluding hard disk)
5W
HDD
Software design can support up to 10T
1/2/3/4/6 T use 48V/1.5A
Use 48V/2A power supply above 6T (1 HDD)
Dimension(W×D×H)
300X227X53mm
Operating Temperature/Humidity
Temperature : -10°C~+50°C (32°F ~ 104°F)
Humidity : Less than 90%RHa
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 30 × 40 × 30 cm |
